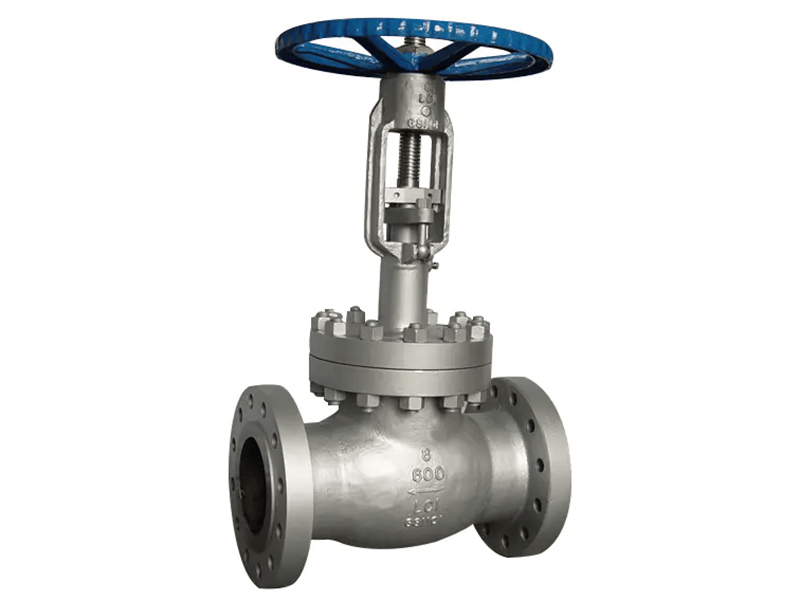

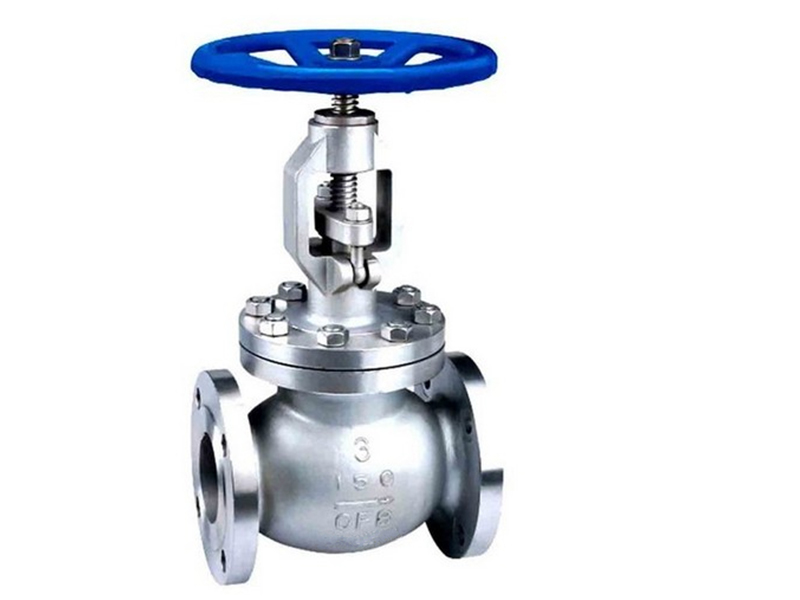

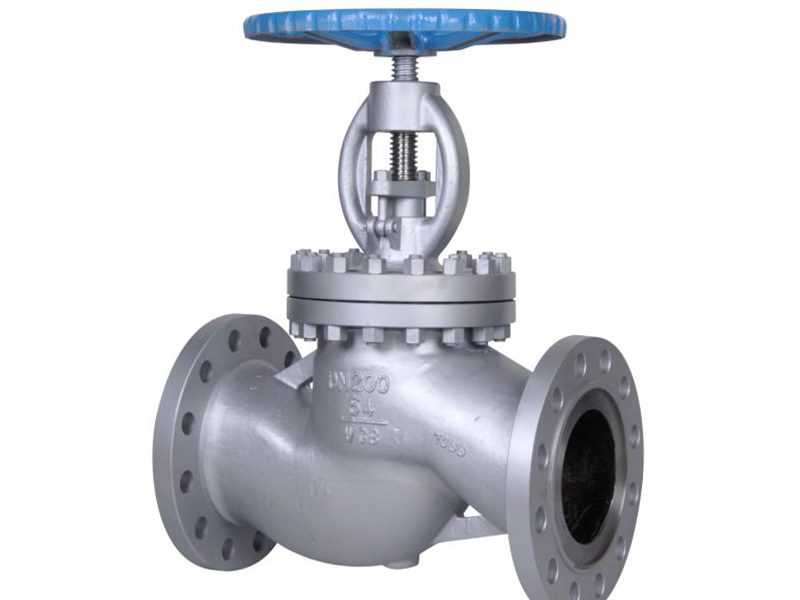

Cast Steel Globe Valve

Cast Steel Globe Valve

ONERO offers a broad line of Cast & Forged globe valves in both Straight Through and Angle Pattern. Size ranges from 1/2” to 36”, Pressure ratings from Class150 to Class2500, which can be your best choice for the applications of throttling and regulation in most cases. Globe valves have several types of designs: globe, angle, Y-pattern, T-pattern, etc.

 Application

A complete range of globe valves, ideal for throttling and shut off services for oil & gas, petrochemical, power, offshore and other demanding applications. Designed for duties where high flow efficiency, tight shut-off and long service life is a prime requirement.

Technical specification

Design & manufacturing standard as per BS1873 /ASME B16.34

Face to face standard as per ASME B16.10

Fanged ends standard as per ASME B16.5

Testing & inspection standard as per API598

Product Range

· Body material: Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel

· Size range(s):1/2"～36"

· Pressure rating: Class150～Class 2500

· End connection: RF, RTJ, BW

· Working temperature:-29℃～+560℃

· Mode of operation: Hand wheel, gear box, Electric-actuator , Pneumatic- actuator, etc.

Design Features

· type: bolted bonnet type, pressure self-sealing bonnet type

· Short opening/closing time

· Small flow resistance for fluid.

· rising stem with top sealing (backseat)

· Only a small force is required for opening/closing.

Globe valves

ONERO Globe valve uses a disc-type/plug, which is always in the path of the flow, to regulate the flow volume; this process is called throttling.

A Globe can also be used as a stop valve (for starting and stopping flow).

Constructive and functional characteristics

· type: bolted bonnet, outside screw and yoke

· rising stem with top sealing (backseat)

· full bore

Execution

· basic design according to BS 1873

· face to face according to ANSI B16.10

· flanges according to ANSI B16.5

· pressure - temperature ratings according to ASME B16.34

· shell wall thickness according to BS 1873

· testing according to API 598

On request

· lantern ring for class 300

· by-pass

· open and shut indicator

· manufactured according to specification NACE MR 0175 for hydrogen sulphide and sour gas service

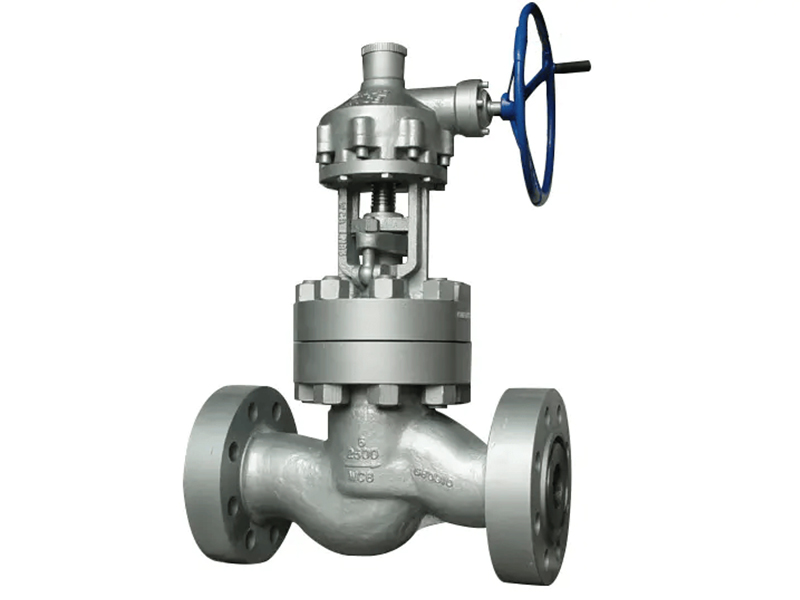

Globe Valves : High Pressure Seal Globe Valve

ONERO high pressure seal globe valve’s top and bottom-guided disc assures stem operation without side thrust caused by high pressure flow. The non-rotating stem results in lower friction of all moving parts and longer stem packing life. All this resulting in smooth, easy operation and tight shutoff under extreme pressures.

 Application

The high pressure seal valves are designed in accordance with BS1873 and ASME B16.34 for service of high temperature and high pressure and are widely used in fossil fuel power plant. Compared with bolted bonnet joint valves, it provides absolute reliable sealing of the bonnet joint, so that the pressure seal valves are more compact and rigid as well as maintenance cost-effective at high temperature and high pressure service.

 Technical specification

Design & manufacturing standard as per BS1873 /ASME B16.34

Face to face standard as per ASME B16.10

Fanged ends standard as per ASME B16.5

Testing & inspection standard as per API598

Product Range

· Body material: Carbon steel, Stainless steel, Alloy steel ,Monel, Duplex, Inconel

· Size range(s):1/2"～24"

· Pressure rating: Class150～Class 2500

· End connection: RF, RTJ, BW

· Working temperature:-29℃～+560℃

· Mode of operation: Hand wheel, gear box, Electric-actuator , Pneumatic- actuator, etc.

 Design Features

Impactor handwheel for tight shutoff.

Body made of superior strength forgings and optional cast steel.

Optional live-loading of packing.

Hardfaced seating faces resist erosion.
